Primary Dump Hopper & Custom Conveyors

Custom Structure

PROJECT DESCRIPTION

n this video, we showcase our recent collaboration with a fantastic team in Milwaukee, who were faced with a complex material handling challenge. The task involved transporting 9″ minus limestone over a mile from the quarry pit to their processing plant. This distance presented logistical issues that made traditional transport methods like trucks inefficient and impractical. The customer needed a solution that was not only capable of handling large volumes but also efficient, safe, and cost-effective. That’s where TCI Manufacturing came in with a custom-engineered solution to tackle the problem head-on.

The Challenge

The customer’s primary challenge was to create a reliable and consistent method for moving substantial quantities of limestone across a significant distance. Traditional methods, such as using trucks, were ruled out due to several limitations. The mile-long distance would have required a constant rotation of trucks, leading to high fuel consumption, increased labor costs, and potential safety hazards due to the high traffic on-site. Additionally, trucks could not provide the continuous, steady flow of material that the plant required for optimal operation, potentially leading to bottlenecks and downtime in the processing phase.

Beyond the transportation logistics, the solution needed to integrate seamlessly with the existing infrastructure of the quarry. This included dealing with elevation changes, navigating around the existing equipment, and ensuring that the material was deposited into the processing plant efficiently. The system had to be robust enough to handle the abrasive nature of limestone while minimizing maintenance requirements to keep operational costs in check. Safety was another critical factor, as the material transport had to be carried out without posing risks to personnel or disrupting the surrounding environment.

The Solution: Custom Primary Dump Hopper and Conveyor System

Our engineering team developed a system that included:

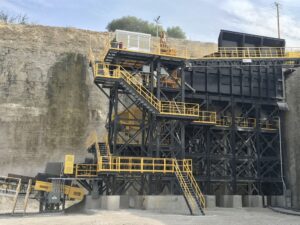

150-Ton Hopper and Primary Crusher: Designed to handle the heavy load of 9″ minus limestone, the hopper ensures a steady flow of material into the conveyor system.

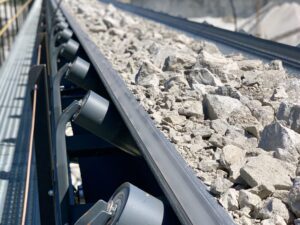

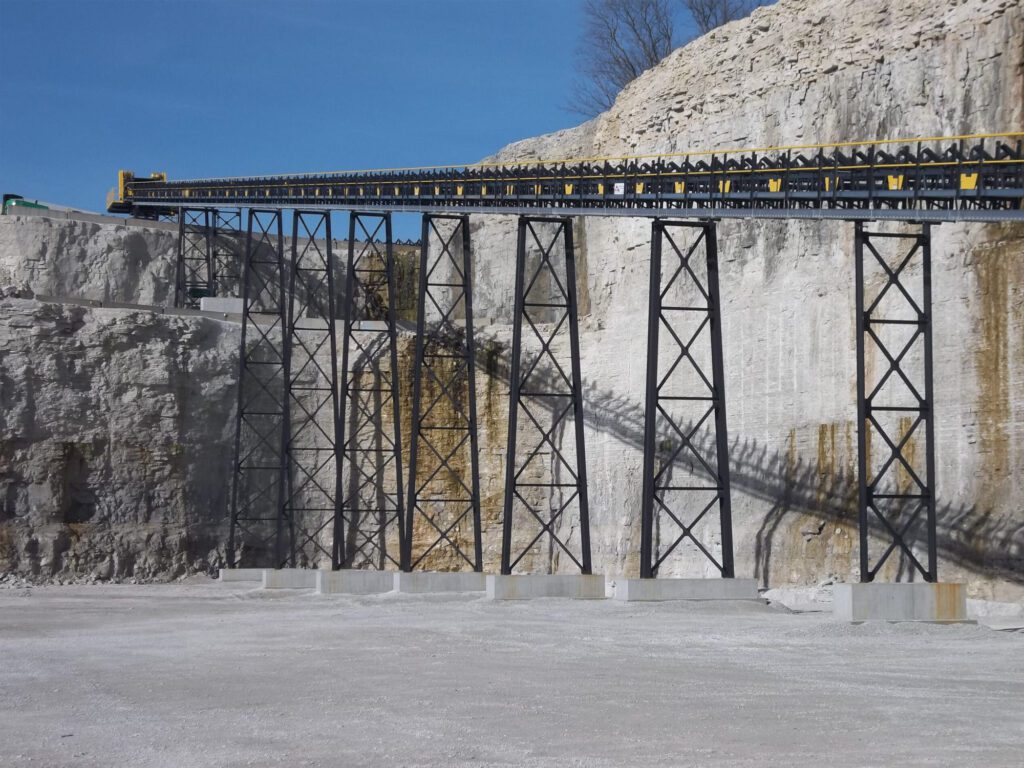

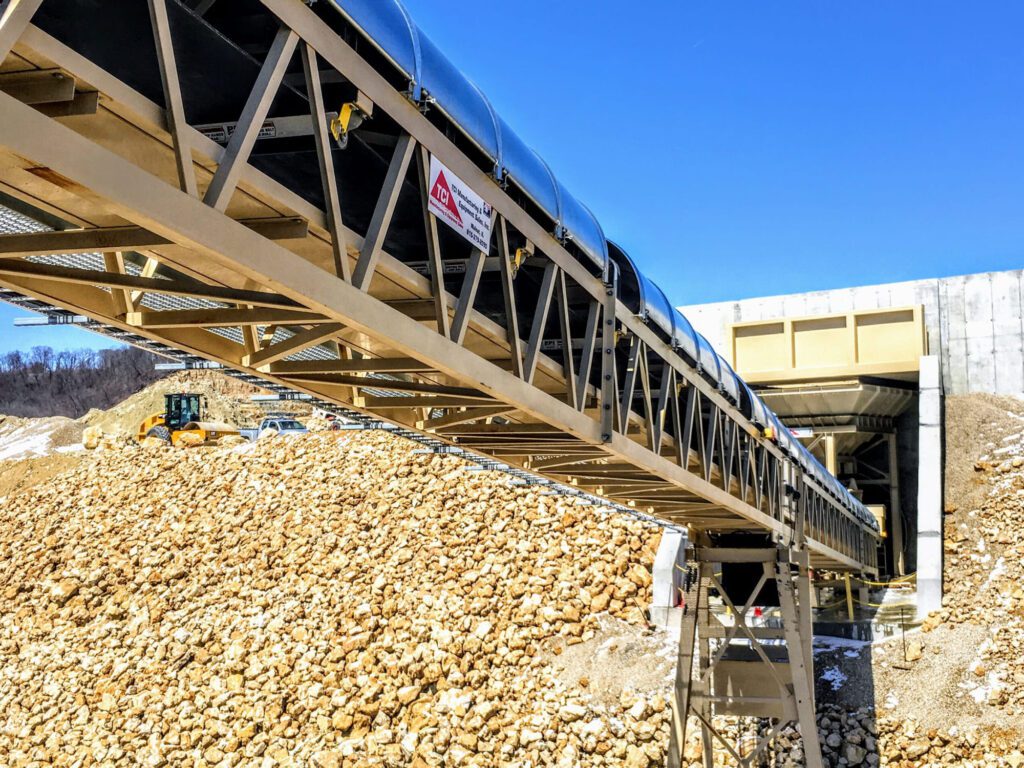

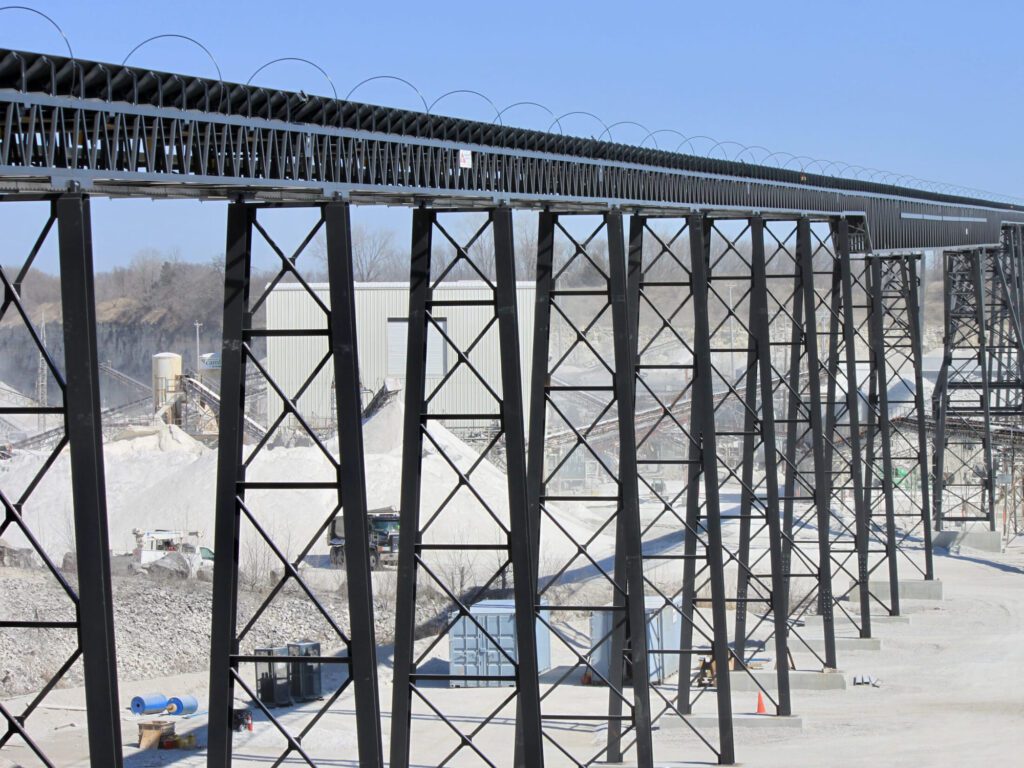

Robust Conveyor System: Built to transport material out of the pit, under an overpass, and across the quarry, this conveyor delivers a continuous surge of limestone to the processing plant efficiently and safely.

The Results

The custom conveyor system proved to be the most efficient and cost-effective solution for the customer’s needs. By providing a consistent surge of material, the plant can operate smoothly and process limestone without interruptions.

This project exemplifies how TCI Manufacturing can design and implement tailored solutions for even the most complex material handling challenges. Watch the video to see this impressive system in action and learn how TCI can help optimize your operation.

#MaterialHandling #TCIManufacturing
